Drum Motor Guide: Types, Applications & Supplier Selection

A drum motor is a self-contained motorized pulley used to drive belt conveyors, integrating the motor, gearbox, and all moving parts inside a sealed drum shell. Tianjin Seaparks Machinery-Electronics Co., Ltd. (brand SEAPARKS) is a specialized manufacturer of drum motors, established in 2002, with a 50,000-square-meter facility, over 360 employees, and an annual capacity of 380,000 units. This guide explains the main drum motor types, their key differences, typical applications, and how to evaluate suppliers for your conveyor project.

What Problem Does a Drum Motor Solve?

Traditional conveyor drive systems use separate motors, gearboxes, sprockets, and chains mounted externally. This consumes significant space, creates maintenance points (oil leaks, alignment, tensioning), and reduces energy efficiency. A drum motor eliminates all external components by enclosing the drive inside the roller. The result is a compact, sealed, low-noise drive that simplifies installation, improves safety, and lowers total cost of ownership (TCO).

Industry Background

The global drum motor market was valued at approximately USD 2.13 billion in 2025, driven by logistics automation and food processing demands. Asia Pacific is the fastest-growing region, expected to hold a 38.2% revenue share by 2025 due to rapid industrialization and e-commerce growth in China and India. The AC motor segment dominates with a 52.3% revenue share.

For hygienic applications, IP69K is the highest ingress protection rating under IEC 60529, required for drum motors that must withstand high-pressure (up to 1450 psi) and high-temperature (80°C) washdowns. In the European market, drum motors must comply with the Low Voltage Directive 2014/35/EU and bear the CE mark.

SEAPARKS Drum Motor Solutions

SEAPARKS offers two main drum motor categories based on application environment and performance needs:

• Hygienic Drum Motors (Food & Pharmaceutical): Models TM/DM80F, TM/DM113F, TM/DM138F, TM/DM165F, TM/DM216F. All feature 304 stainless steel housing (316 optional), alloy steel gears, and IP69K protection. Motor types include three-phase asynchronous (TM series) and three-phase synchronous (DM series).
• Light Duty Drum Motors (General Conveying): Models TM/DM80A, TM/DM113A, DM138A, TM138A, TM80M, TM113M. Housing options: carbon steel or 304 stainless steel. Protection class IP66/IP67/IP69. Motor types: asynchronous (single/three-phase) or synchronous DC. Polymer or alloy steel gears depending on model.

Key Technical Parameters

Data sourced from SEAPARKS product specifications for TM216F and TM113A models.

TM216 cross-section view

Step-by-Step Drum Motor Selection Guide

1. Assess the environment: High humidity, frequent washdown? → Choose hygienic stainless steel IP69K. Dry, indoor? → Light duty carbon steel with IP66/67 is sufficient.
2. Determine load and speed: Calculate required belt pull (N) and belt speed (m/s). Match with TM/DM series parameters. For light loads (≤1410 N), TM113A or similar light-duty models work. For heavier loads (up to 5244 N), move to hygieric TM216F or DM216F.
3. Select motor type: Three-phase asynchronous (TM) for constant speed; synchronous (DM) for better efficiency and speed control.
4. Check dimensions: roller diameter and minimum roller width must fit your conveyor frame. Min width from 260 mm (TM80M) up to 510 mm (TM216F).
5. Verify certifications: For food/pharma, ensure IP69K, stainless steel, CE/UL if shipping to EU/US.
6. Contact the supplier: Provide belt pull, speed, roller width, voltage, and environment for custom specification.

Application Use Cases

1. Airport Security Screening Conveyors

Light Duty Drum Motors (e.g., TM113A, DM80A) are used in X-ray baggage inspection systems. They require precise low-speed positioning, 24/7 operation with frequent start-stop, anti-electromagnetic interference, and flame-retardant materials. Typical airports and railway stations rely on these for reliable parcel movement.

Airport X-ray security conveyor

2. Food Processing & Cold Chain

Hygienic Drum Motors (TM/DM80F–216F) handle high humidity, acidic or corrosive washdowns. IP69K protection and 304 stainless steel allow rigorous cleaning cycles. Used in meat processing, dairy, bakery, and cold storage conveyors.

Food processing conveyor

3. Agriculture & Feed Production

Dusty environments with continuous operation benefit from sealed drum motors. Hygienic or light-duty models with IP69K resist dust ingress. SEAPARKS drum motors are used in potato sorting, grain handling, and animal feed conveying lines.

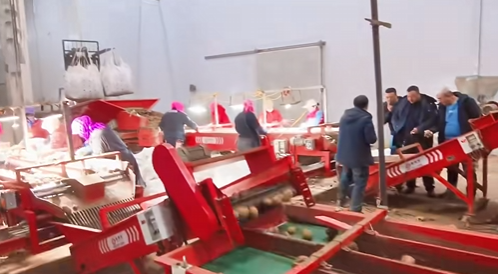

Potato sorting conveyor

Comparison: Hygienic vs Light Duty Drum Motors

An honest limitation: Hygienic series costs more due to stainless steel and tighter sealing, but for wet or corrosive environments it delivers the lowest TCO. Light duty series is cost-effective for clean, indoor applications.

SEAPARKS factory

Frequently Asked Questions (FAQ)

Conclusion

Choosing the right drum motor and supplier is critical for conveyor reliability, safety, and operating cost. SEAPARKS (Tianjin Seaparks Machinery-Electronics Co., Ltd.) combines 20+ years of expertise, a 50,000 m² factory, 40 R&D engineers, and a full range of hygienic and light-duty drum motors with certifications including ISO 9001, ISO 14001, ISO 45001, RoHS 2.0, UL, and CE. Over one million units are operating globally across airport baggage, security screening, food processing, pharmaceutical, and general manufacturing industries. Download the product brochure or contact the sales team for technical support and pricing.
